Thermoelectric Power Generator SP1848

Power

Thermoelectric Power Generator SP1848

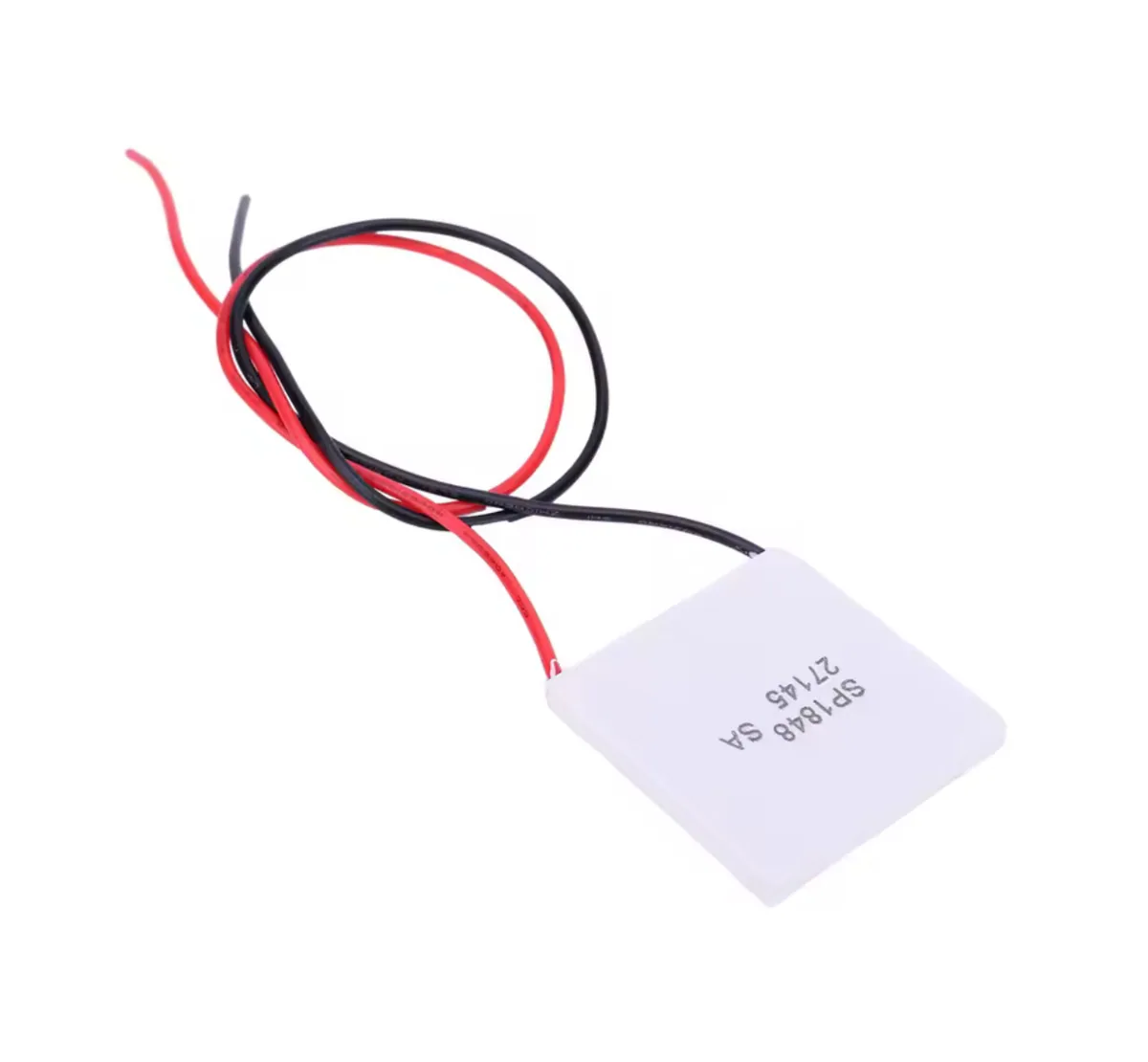

SP1848-27145 Thermoelectric Power Generator Cooler Peltier 120Celsius 40x40mm High Temperature Generation Elemente Module

₦6,000In stock

  • Free delivery once your order comes to ₦100,000.
  • Dispatched the same working day on orders placed before 2pm.
  • Buying ten or more? Message us on WhatsApp.

Specification

The detail

If something here is wrong for your build, say so before you order — we would rather swap it now than process a return.

Specification:

Origin: Mainland China

Type: Module

Condition: New

Operating Temperature: -40 degree to 120 degree

Model Number: Integrated Circuits

Lead Length: About 300mm

Power Generating Plate Dimensions: 40mm*40mm*4mm/0.2*0.2*0.2in

Operating Instructions:

Attach the side with markings to the heat dissipation surface (cold end), and attach the unmarked side to the heat absorption surface (hot end).

Red wire connects to the positive electrode, black wire connects to the negative electrode. Electricity generation occurs with a temperature difference.

Thermal Conductivity (K): 15~16x10-3-W/℃ cm.

Temperature Range(SP1848-27145): -40°C to 120°C

Temperature Difference (Approximate Values):
